HAM 30-1941
Nirodrill 8xD
solid carbide spiral drill
Product information
- special chip flute geometry
- special point ground for machining of stainless steel
- 30° RH helix
- interior coolant
- shrink fit
- High Performance Cutting
- HSF - Hybride Surface Finishing
Available in many variants
Material Properties
Material
wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable
limited suitable
Properties "HAM 30-1941"
| clamping surface: | HAK |
|---|---|
| cutting direction: | right hand cutting |
| head coating: | no |
| internal cooling: | yes |
| length-to-diameter ratio: | 8 x D mm |
| nominal diameter tolerance: | m7 |
| saft diameter tolerance: | h6 |
| spiral type: | right hand helix |

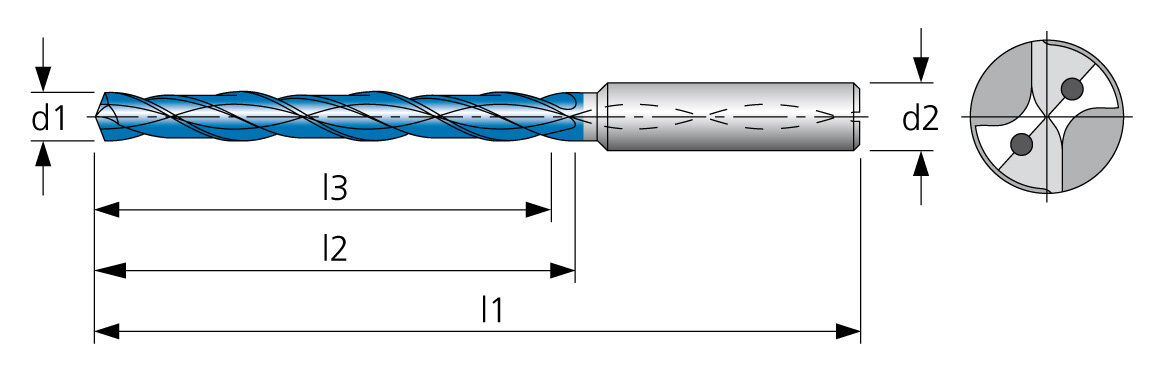

Article No
Nominal Ø
(d1) [mm]
(d1) [mm]
Shank Ø
(d2) [mm]
(d2) [mm]
Length
(l1) [mm]
(l1) [mm]
Flute Length
(l2) [mm]
(l2) [mm]
Cutting Length
(l3) [mm]
(l3) [mm]
Stock
HAM 30-1941-0300
3.00 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
9
HAM 30-1941-0310
3.10 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
14
HAM 30-1941-0320
3.20 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
51
HAM 30-1941-0330
3.30 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
10
HAM 30-1941-0340
3.40 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
26
HAM 30-1941-0350
3.50 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
5
HAM 30-1941-0360
3.60 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
23
HAM 30-1941-0370
3.70 mm
6.00 mm
72.00 mm
34.00 mm
29.00 mm
17
HAM 30-1941-0380
3.80 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
22
HAM 30-1941-0390
3.90 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
12
HAM 30-1941-0400
4.00 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
9
HAM 30-1941-0410
4.10 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
35
HAM 30-1941-0420
4.20 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
22
HAM 30-1941-0430
4.30 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
20
HAM 30-1941-0440
4.40 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
16
HAM 30-1941-0450
4.50 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
15
HAM 30-1941-0460
4.60 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
9
HAM 30-1941-0470
4.70 mm
6.00 mm
81.00 mm
43.00 mm
36.00 mm
6
HAM 30-1941-0480
4.80 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
12
HAM 30-1941-0490
4.90 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
4
HAM 30-1941-0500
5.00 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
9
HAM 30-1941-0510
5.10 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
18
HAM 30-1941-0520
5.20 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
9
HAM 30-1941-0530
5.30 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
8
HAM 30-1941-0540
5.40 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
8
HAM 30-1941-0550
5.50 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
22
HAM 30-1941-0560
5.60 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
19
HAM 30-1941-0570
5.70 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
9
HAM 30-1941-0580
5.80 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
10
HAM 30-1941-0590
5.90 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
10
HAM 30-1941-0600
6.00 mm
6.00 mm
95.00 mm
57.00 mm
48.00 mm
27
HAM 30-1941-0610
6.10 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
15
HAM 30-1941-0620
6.20 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
4
HAM 30-1941-0630
6.30 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
10
HAM 30-1941-0640
6.40 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
2
HAM 30-1941-0650
6.50 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
11
HAM 30-1941-0660
6.60 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
10
HAM 30-1941-0670
6.70 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
3
HAM 30-1941-0680
6.80 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
8
HAM 30-1941-0690
6.90 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
10
HAM 30-1941-0700
7.00 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
12
HAM 30-1941-0710
7.10 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
5
HAM 30-1941-0720
7.20 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
10
HAM 30-1941-0730
7.30 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
1
HAM 30-1941-0740
7.40 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
14
HAM 30-1941-0750
7.50 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
1
HAM 30-1941-0760
7.60 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
4
HAM 30-1941-0770
7.70 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
10
HAM 30-1941-0780
7.80 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
9
HAM 30-1941-0790
7.90 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
3
HAM 30-1941-0800
8.00 mm
8.00 mm
114.00 mm
76.00 mm
64.00 mm
13
HAM 30-1941-0810
8.10 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
7
HAM 30-1941-0820
8.20 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
18
HAM 30-1941-0830
8.30 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
7
HAM 30-1941-0840
8.40 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
1
HAM 30-1941-0850
8.50 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
18
HAM 30-1941-0860
8.60 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
4
HAM 30-1941-0870
8.70 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
6
HAM 30-1941-0880
8.80 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
15
HAM 30-1941-0890
8.90 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
14
HAM 30-1941-0900
9.00 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
7
HAM 30-1941-0910
9.10 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
3
HAM 30-1941-0920
9.20 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
0
HAM 30-1941-0930
9.30 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
7
HAM 30-1941-0940
9.40 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
5
HAM 30-1941-0950
9.50 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
2
HAM 30-1941-0960
9.60 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
3
HAM 30-1941-0970
9.70 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
6
HAM 30-1941-0980
9.80 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
4
HAM 30-1941-0990
9.90 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
17
HAM 30-1941-1000
10.00 mm
10.00 mm
142.00 mm
95.00 mm
80.00 mm
16
HAM 30-1941-1010
10.10 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
13
HAM 30-1941-1020
10.20 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
6
HAM 30-1941-1030
10.30 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
4
HAM 30-1941-1040
10.40 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
2
HAM 30-1941-1050
10.50 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
4
HAM 30-1941-1060
10.60 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
3
HAM 30-1941-1070
10.70 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
3
HAM 30-1941-1080
10.80 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
3
HAM 30-1941-1090
10.90 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
2
HAM 30-1941-1100
11.00 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
5
HAM 30-1941-1110
11.10 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
5
HAM 30-1941-1120
11.20 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
6
HAM 30-1941-1130
11.30 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
3
HAM 30-1941-1140
11.40 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
0
HAM 30-1941-1150
11.50 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
2
HAM 30-1941-1160
11.60 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
7
HAM 30-1941-1170
11.70 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
6
HAM 30-1941-1180
11.80 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
2
HAM 30-1941-1190
11.90 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
2
HAM 30-1941-1200
12.00 mm
12.00 mm
162.00 mm
114.00 mm
96.00 mm
0
HAM 30-1941-1250
12.50 mm
14.00 mm
178.00 mm
131.00 mm
112.00 mm
5
HAM 30-1941-1280
12.80 mm
14.00 mm
178.00 mm
131.00 mm
112.00 mm
4
HAM 30-1941-1300
13.00 mm
14.00 mm
178.00 mm
131.00 mm
112.00 mm
4
HAM 30-1941-1350
13.50 mm
14.00 mm
178.00 mm
131.00 mm
112.00 mm
5
HAM 30-1941-1380
13.80 mm
14.00 mm
178.00 mm
131.00 mm
112.00 mm
3
HAM 30-1941-1400
14.00 mm
14.00 mm
178.00 mm
131.00 mm
112.00 mm
5
HAM 30-1941-1450
14.50 mm
16.00 mm
203.00 mm
152.00 mm
128.00 mm
3
HAM 30-1941-1480
14.80 mm
16.00 mm
203.00 mm
152.00 mm
128.00 mm
5
HAM 30-1941-1500
15.00 mm
16.00 mm
203.00 mm
152.00 mm
128.00 mm
6
HAM 30-1941-1550
15.50 mm
16.00 mm
203.00 mm
152.00 mm
128.00 mm
3
HAM 30-1941-1580
15.80 mm
16.00 mm
203.00 mm
152.00 mm
128.00 mm
6
HAM 30-1941-1600
16.00 mm
16.00 mm
203.00 mm
152.00 mm
128.00 mm
3
Description
| length-to-diameter ratio | 8 x D mm |
| Spiral type | right hand helix |
| Cutting direction | right hand cutting |
| Clamping surface | HAK |
| Head coating | no |
| Internal cooling | yes |
