HAM 40-5151-HB
solid carbide end mill
Product information
- centre cutting
- special geometry with unequal helix
- high chipping volume
- very smooth running
- HSF - Hybride Surface Finishing
- High Performance Cutting
- shrink fit
Available in many variants
Material Properties
Material
wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable
limited suitable
Properties "HAM 40-5151-HB"
| clamping surface: | HB |
|---|---|
| cutting direction: | right hand cutting |
| head coating: | no |
| internal cooling: | no |
| nominal diameter tolerance: | e8 |
| saft diameter tolerance: | h6 |
| spiral type: | right hand helix |

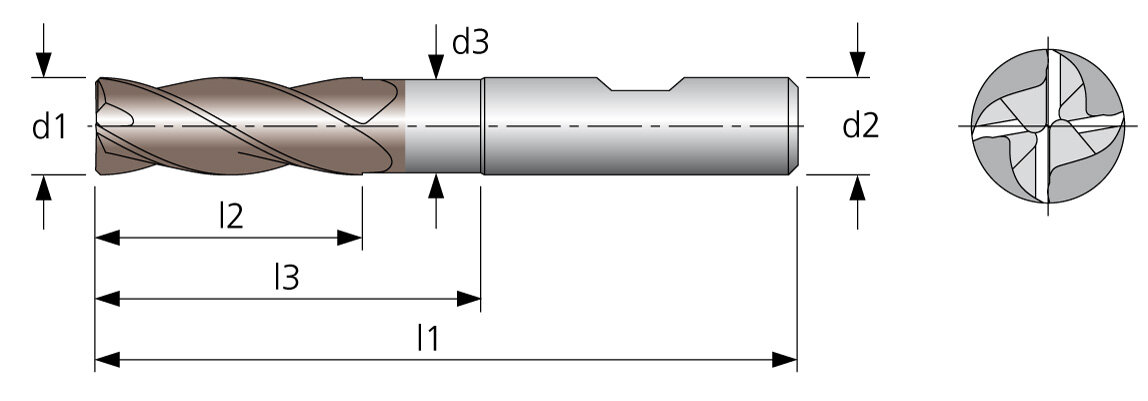

Article No
Nominal Ø
(d1) [mm]
(d1) [mm]
Shank Ø
(d2) [mm]
(d2) [mm]
Length
(l1) [mm]
(l1) [mm]
Flute Length [mm]
Cutting Length
(l2) [mm]
(l2) [mm]
Stock
HAM 40-5151-0300-8-13-HB
3.00 mm
6.00 mm
57.00 mm
0.00 mm
8.00 mm
11
HAM 40-5151-0400-11-17-HB
4.00 mm
6.00 mm
57.00 mm
0.00 mm
11.00 mm
7
HAM 40-5151-0400-11-HB
4.00 mm
6.00 mm
57.00 mm
0.00 mm
11.00 mm
2
HAM 40-5151-0500-13-19-HB
5.00 mm
6.00 mm
57.00 mm
0.00 mm
13.00 mm
20
HAM 40-5151-0500-13-HB
5.00 mm
6.00 mm
57.00 mm
0.00 mm
13.00 mm
32
HAM 40-5151-0600-10-HB
6.00 mm
6.00 mm
54.00 mm
0.00 mm
10.00 mm
5
HAM 40-5151-0600-13-21-HB
6.00 mm
6.00 mm
57.00 mm
0.00 mm
13.00 mm
23
HAM 40-5151-0600-13-HB
6.00 mm
6.00 mm
57.00 mm
0.00 mm
13.00 mm
18
HAM 40-5151-0700-19-HB
7.00 mm
8.00 mm
63.00 mm
0.00 mm
19.00 mm
19
HAM 40-5151-0800-12-HB
8.00 mm
8.00 mm
58.00 mm
0.00 mm
12.00 mm
2
HAM 40-5151-0800-19-27-HB
8.00 mm
8.00 mm
63.00 mm
0.00 mm
19.00 mm
1
HAM 40-5151-0800-19-HB
8.00 mm
8.00 mm
63.00 mm
0.00 mm
19.00 mm
25
HAM 40-5151-0900-22-HB
9.00 mm
10.00 mm
72.00 mm
0.00 mm
22.00 mm
5
HAM 40-5151-1000-14-HB
10.00 mm
10.00 mm
66.00 mm
0.00 mm
14.00 mm
22
HAM 40-5151-1000-22-32-HB
10.00 mm
10.00 mm
72.00 mm
0.00 mm
22.00 mm
15
HAM 40-5151-1000-22-HB
10.00 mm
10.00 mm
72.00 mm
0.00 mm
22.00 mm
10
HAM 40-5151-1100-26-HB
11.00 mm
12.00 mm
83.00 mm
0.00 mm
26.00 mm
20
HAM 40-5151-1200-16-HB
12.00 mm
12.00 mm
73.00 mm
0.00 mm
16.00 mm
0
HAM 40-5151-1200-26-38-HB
12.00 mm
12.00 mm
83.00 mm
0.00 mm
26.00 mm
8
HAM 40-5151-1200-26-HB
12.00 mm
12.00 mm
83.00 mm
0.00 mm
26.00 mm
22
HAM 40-5151-1300-26-HB
13.00 mm
14.00 mm
83.00 mm
0.00 mm
26.00 mm
8
HAM 40-5151-1400-18-HB
14.00 mm
14.00 mm
75.00 mm
0.00 mm
18.00 mm
12
HAM 40-5151-1400-26-38-HB
14.00 mm
14.00 mm
83.00 mm
0.00 mm
26.00 mm
10
HAM 40-5151-1400-26-HB
14.00 mm
14.00 mm
83.00 mm
0.00 mm
26.00 mm
9
HAM 40-5151-1500-32-HB
15.00 mm
16.00 mm
92.00 mm
0.00 mm
32.00 mm
5
HAM 40-5151-1600-22-HB
16.00 mm
16.00 mm
82.00 mm
0.00 mm
22.00 mm
13
HAM 40-5151-1600-32-44-HB
16.00 mm
16.00 mm
92.00 mm
0.00 mm
32.00 mm
5
HAM 40-5151-1600-32-HB
16.00 mm
16.00 mm
92.00 mm
0.00 mm
32.00 mm
1
HAM 40-5151-1800-24-HB
18.00 mm
18.00 mm
84.00 mm
0.00 mm
24.00 mm
1
HAM 40-5151-1800-32-44-HB
18.00 mm
18.00 mm
92.00 mm
0.00 mm
32.00 mm
7
HAM 40-5151-1800-32-HB
18.00 mm
18.00 mm
92.00 mm
0.00 mm
32.00 mm
12
HAM 40-5151-2000-26-HB
20.00 mm
20.00 mm
92.00 mm
0.00 mm
26.00 mm
3
HAM 40-5151-2000-38-54-HB
20.00 mm
20.00 mm
104.00 mm
0.00 mm
38.00 mm
7
HAM 40-5151-2000-38-HB
20.00 mm
20.00 mm
104.00 mm
0.00 mm
38.00 mm
6
HAM 40-5151-2500-38-54-HB
25.00 mm
25.00 mm
110.00 mm
0.00 mm
38.00 mm
0
HAM 40-5151-2500-38-HB
25.00 mm
25.00 mm
110.00 mm
0.00 mm
38.00 mm
1
HAM 40-5151-2600-45-HB
26.00 mm
25.00 mm
115.00 mm
0.00 mm
45.00 mm
16
Description
| Spiral type | right hand helix |
| Cutting direction | right hand cutting |
| Clamping surface | HB |
| Head coating | no |
| Internal cooling | no |
