HAM 40-5390
solid carbide end mill
Product information
- special geometry with unequal helix
- high chipping volume (up to 1,5 x D)
- very smooth running and very little vibrations during machining
- cutting area geometrical balanced
- shrink fit
- High Performance Cutting
- High Speed Cutting
- HSF - Hybride Surface Finishing
Available in many variants
Material Properties
Material
wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable
limited suitable
Properties "HAM 40-5390"
| clamping surface: | HA |
|---|---|
| cutting direction: | right hand cutting |
| head coating: | no |
| internal cooling: | no |
| nominal diameter tolerance: | f8 |
| saft diameter tolerance: | h6 |
| spiral type: | right hand helix |

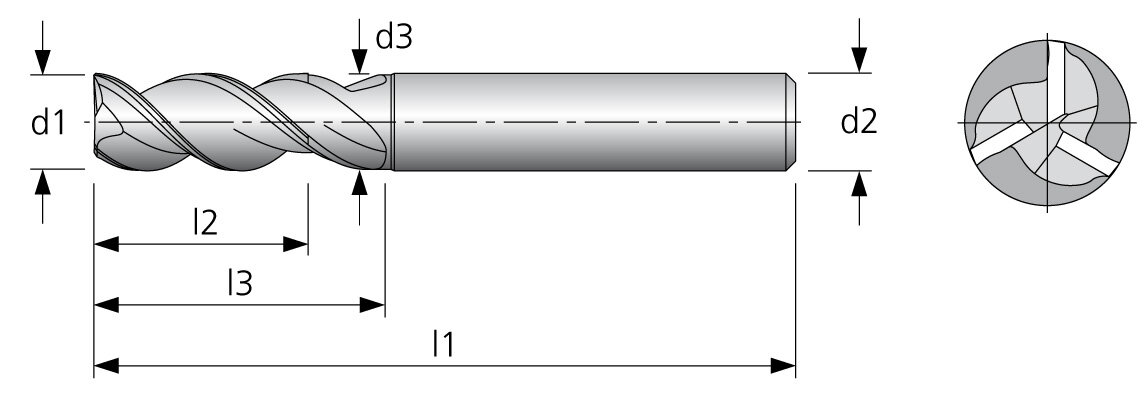

Article No
Nominal Ø
(d1) [mm]
(d1) [mm]
Shank Ø
(d2) [mm]
(d2) [mm]
Length
(l1) [mm]
(l1) [mm]
Flute Length [mm]
Cutting Length
(l2) [mm]
(l2) [mm]
Stock
HAM 40-5390-0300-12
3.00 mm
6.00 mm
57.00 mm
12.50 mm
8.00 mm
16
HAM 40-5390-0400-18
4.00 mm
6.00 mm
57.00 mm
17.00 mm
11.00 mm
18
HAM 40-5390-0500-18
5.00 mm
6.00 mm
57.00 mm
17.00 mm
13.00 mm
6
HAM 40-5390-0600-18
6.00 mm
6.00 mm
57.00 mm
17.00 mm
13.00 mm
53
HAM 40-5390-0600-42
6.00 mm
6.00 mm
80.00 mm
17.00 mm
13.00 mm
25
HAM 40-5390-0800-25
8.00 mm
8.00 mm
63.00 mm
24.00 mm
19.00 mm
71
HAM 40-5390-0800-62
8.00 mm
8.00 mm
100.00 mm
24.00 mm
19.00 mm
21
HAM 40-5390-1000-30
10.00 mm
10.00 mm
72.00 mm
29.00 mm
22.00 mm
148
HAM 40-5390-1000-60
10.00 mm
10.00 mm
100.00 mm
29.00 mm
22.00 mm
17
HAM 40-5390-1200-36
12.00 mm
12.00 mm
83.00 mm
35.00 mm
26.00 mm
18
HAM 40-5390-1200-73
12.00 mm
12.00 mm
120.00 mm
35.00 mm
26.00 mm
20
HAM 40-5390-1600-100
16.00 mm
16.00 mm
150.00 mm
41.00 mm
32.00 mm
10
HAM 40-5390-1600-42
16.00 mm
16.00 mm
92.00 mm
41.00 mm
32.00 mm
12
HAM 40-5390-2000-100
20.00 mm
20.00 mm
150.00 mm
51.00 mm
38.00 mm
6
HAM 40-5390-2000-52
20.00 mm
20.00 mm
104.00 mm
51.00 mm
38.00 mm
16
Description
| Spiral type | right hand helix |
| Cutting direction | right hand cutting |
| Clamping surface | HA |
| Head coating | no |
| Internal cooling | no |
