HAM 30-1901-HBK
HAM 30-1901-HBK

HAM 30-1901-HBK

Nirodrill 5xD

solid carbide spiral drill

Product information
  • special chip flute geometry
  • special point ground for machining of stainless steel
  • 30° RH helix
  • interior coolant
  • shrink fit
  • High Performance Cutting
  • HSF - Hybride Surface Finishing
Available in many variants
HAM standard specifications
solid carbide ultra micro grain
DIN 6537
High Performance Cutting
special-polishing process
cutting length 5 x diameter
number of teeth 2
shank HB with IC DIN 6535
shrink fit
point angle 140°
interior coolant
helix angle 30° right hand
Show variants

Material Properties

Material

30-1901-HBK

wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable limited suitable
Properties "HAM 30-1901-HBK"
clamping surface: HBK
cutting direction: right hand cutting
head coating: no
internal cooling: yes
length-to-diameter ratio: 5 x D mm
nominal diameter tolerance: m7
saft diameter tolerance: h6
spiral type: right hand helix

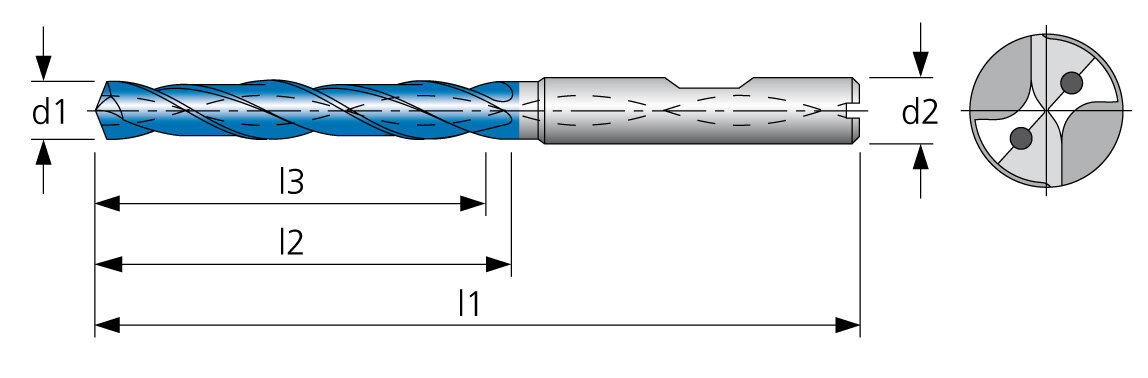

Article No
Nominal Ø
(d1) [mm]
Shank Ø
(d2) [mm]
Length
(l1) [mm]
Flute Length
(l2) [mm]
Cutting Length
(l3) [mm]
Stock

HAM 30-1901-0300-HBK

3.00 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
52

HAM 30-1901-0310-HBK

3.10 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
40

HAM 30-1901-0320-HBK

3.20 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
90

HAM 30-1901-0330-HBK

3.30 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
160

HAM 30-1901-0340-HBK

3.40 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
13

HAM 30-1901-0350-HBK

3.50 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
35

HAM 30-1901-0360-HBK

3.60 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
6

HAM 30-1901-0370-HBK

3.70 mm
6.00 mm
66.00 mm
28.00 mm
23.00 mm
18

HAM 30-1901-0380-HBK

3.80 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
18

HAM 30-1901-0390-HBK

3.90 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
12

HAM 30-1901-0400-HBK

4.00 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
26

HAM 30-1901-0410-HBK

4.10 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
11

HAM 30-1901-0420-HBK

4.20 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
30

HAM 30-1901-0430-HBK

4.30 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
1

HAM 30-1901-0440-HBK

4.40 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
9

HAM 30-1901-0450-HBK

4.50 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
10

HAM 30-1901-0460-HBK

4.60 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
9

HAM 30-1901-0465-HBK

4.65 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
59

HAM 30-1901-0470-HBK

4.70 mm
6.00 mm
74.00 mm
36.00 mm
29.00 mm
8

HAM 30-1901-0480-HBK

4.80 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
44

HAM 30-1901-0490-HBK

4.90 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
19

HAM 30-1901-0500-HBK

5.00 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
72

HAM 30-1901-0510-HBK

5.10 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
41

HAM 30-1901-0520-HBK

5.20 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
40

HAM 30-1901-0530-HBK

5.30 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
21

HAM 30-1901-0540-HBK

5.40 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
20

HAM 30-1901-0550-HBK

5.50 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
24

HAM 30-1901-0555-HBK

5.55 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
20

HAM 30-1901-0560-HBK

5.60 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
11

HAM 30-1901-0570-HBK

5.70 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
11

HAM 30-1901-0580-HBK

5.80 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
16

HAM 30-1901-0590-HBK

5.90 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
5

HAM 30-1901-0600-HBK

6.00 mm
6.00 mm
82.00 mm
44.00 mm
35.00 mm
0

HAM 30-1901-0610-HBK

6.10 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
16

HAM 30-1901-0620-HBK

6.20 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
3

HAM 30-1901-0630-HBK

6.30 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
19

HAM 30-1901-0640-HBK

6.40 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
14

HAM 30-1901-0650-HBK

6.50 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
20

HAM 30-1901-0660-HBK

6.60 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
9

HAM 30-1901-0670-HBK

6.70 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
14

HAM 30-1901-0680-HBK

6.80 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
17

HAM 30-1901-0690-HBK

6.90 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
10

HAM 30-1901-0700-HBK

7.00 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
23

HAM 30-1901-0710-HBK

7.10 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
19

HAM 30-1901-0720-HBK

7.20 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
6

HAM 30-1901-0730-HBK

7.30 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
20

HAM 30-1901-0740-HBK

7.40 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
14

HAM 30-1901-0750-HBK

7.50 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
22

HAM 30-1901-0760-HBK

7.60 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
7

HAM 30-1901-0770-HBK

7.70 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
10

HAM 30-1901-0780-HBK

7.80 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
22

HAM 30-1901-0790-HBK

7.90 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
19

HAM 30-1901-0800-HBK

8.00 mm
8.00 mm
91.00 mm
53.00 mm
43.00 mm
13

HAM 30-1901-0810-HBK

8.10 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
6

HAM 30-1901-0820-HBK

8.20 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
12

HAM 30-1901-0830-HBK

8.30 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
16

HAM 30-1901-0840-HBK

8.40 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
11

HAM 30-1901-0850-HBK

8.50 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
18

HAM 30-1901-0860-HBK

8.60 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
13

HAM 30-1901-0870-HBK

8.70 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
6

HAM 30-1901-0880-HBK

8.80 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
28

HAM 30-1901-0890-HBK

8.90 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
4

HAM 30-1901-0900-HBK

9.00 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
4

HAM 30-1901-0910-HBK

9.10 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
8

HAM 30-1901-0920-HBK

9.20 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
9

HAM 30-1901-0930-HBK

9.30 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
14

HAM 30-1901-0940-HBK

9.40 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
5

HAM 30-1901-0950-HBK

9.50 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
3

HAM 30-1901-0960-HBK

9.60 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
10

HAM 30-1901-0970-HBK

9.70 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
6

HAM 30-1901-0980-HBK

9.80 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
10

HAM 30-1901-0990-HBK

9.90 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
12

HAM 30-1901-1000-HBK

10.00 mm
10.00 mm
103.00 mm
61.00 mm
49.00 mm
9

HAM 30-1901-1010-HBK

10.10 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
5

HAM 30-1901-1020-HBK

10.20 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
18

HAM 30-1901-1030-HBK

10.30 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
12

HAM 30-1901-1040-HBK

10.40 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
5

HAM 30-1901-1050-HBK

10.50 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
17

HAM 30-1901-1060-HBK

10.60 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
10

HAM 30-1901-1070-HBK

10.70 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
6

HAM 30-1901-1080-HBK

10.80 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
5

HAM 30-1901-1090-HBK

10.90 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
8

HAM 30-1901-1100-HBK

11.00 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
18

HAM 30-1901-1110-HBK

11.10 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
6

HAM 30-1901-1120-HBK

11.20 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
3

HAM 30-1901-1130-HBK

11.30 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
1

HAM 30-1901-1140-HBK

11.40 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
7

HAM 30-1901-1150-HBK

11.50 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
1

HAM 30-1901-1160-HBK

11.60 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
3

HAM 30-1901-1170-HBK

11.70 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
10

HAM 30-1901-1180-HBK

11.80 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
9

HAM 30-1901-1190-HBK

11.90 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
2

HAM 30-1901-1200-HBK

12.00 mm
12.00 mm
118.00 mm
71.00 mm
56.00 mm
1

HAM 30-1901-1250-HBK

12.50 mm
14.00 mm
124.00 mm
77.00 mm
60.00 mm
6

HAM 30-1901-1280-HBK

12.80 mm
14.00 mm
124.00 mm
77.00 mm
60.00 mm
4

HAM 30-1901-1300-HBK

13.00 mm
14.00 mm
124.00 mm
77.00 mm
60.00 mm
13

HAM 30-1901-1350-HBK

13.50 mm
14.00 mm
124.00 mm
77.00 mm
60.00 mm
7

HAM 30-1901-1380-HBK

13.80 mm
14.00 mm
124.00 mm
77.00 mm
60.00 mm
2

HAM 30-1901-1400-HBK

14.00 mm
14.00 mm
124.00 mm
77.00 mm
60.00 mm
8

HAM 30-1901-1450-HBK

14.50 mm
16.00 mm
133.00 mm
83.00 mm
63.00 mm
7

HAM 30-1901-1480-HBK

14.80 mm
16.00 mm
133.00 mm
83.00 mm
63.00 mm
4

HAM 30-1901-1500-HBK

15.00 mm
16.00 mm
133.00 mm
83.00 mm
63.00 mm
3

HAM 30-1901-1510-HBK

15.10 mm
16.00 mm
133.00 mm
83.00 mm
63.00 mm
4

HAM 30-1901-1550-HBK

15.50 mm
16.00 mm
133.00 mm
83.00 mm
63.00 mm
4

HAM 30-1901-1580-HBK

15.80 mm
16.00 mm
133.00 mm
83.00 mm
63.00 mm
2

HAM 30-1901-1600-HBK

16.00 mm
16.00 mm
133.00 mm
83.00 mm
63.00 mm
10
Description
length-to-diameter ratio 5 x D mm
Spiral type right hand helix
Cutting direction right hand cutting
Clamping surface HBK
Head coating no
Internal cooling yes
Cutting data
This website uses cookies to ensure the best experience possible. Imprint, data protection
