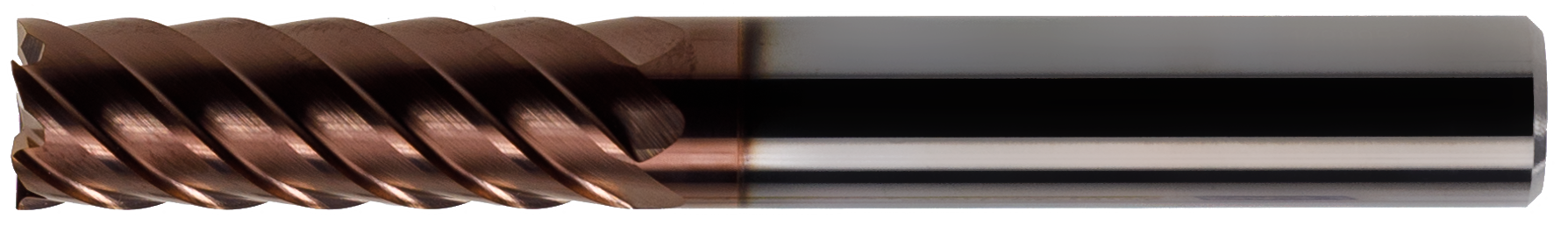

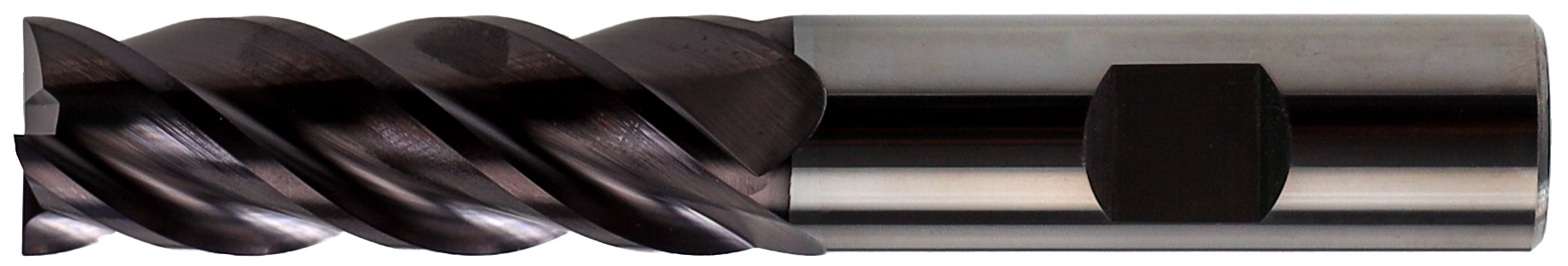

Solid carbide end mill

Solid carbide end mills are versatile tools for precise milling operations in CNC machining centers. They ensure high dimensional accuracy, smooth cutting conditions and reliable tool life in a variety of materials, including steel, stainless steel, cast iron, aluminum and numerous alloys. Thanks to their high hardness and thermal stability, they are suitable for both roughing operations with high material removal rates and fine finishing operations with high surface quality.

Applications

End mills are used for machining shoulders, grooves, pockets, flat surfaces and 2D and 3D contours. They are suitable for tool and mold making, the automotive industry, mechanical engineering and series production that requires consistent precision and reliable machining. Their geometry enables stable machining even with tough or difficult-to-machine materials and supports high-quality machining results on complex contours.

Technical Specifications

The cutting geometry of a solid carbide end mill determines chip formation, cutting pressure and smoothness of the cut. The number of cutting edges and the helix angle influence how stable the tool is during cutting and how efficiently chips are evacuated. A robust core geometry increases tool rigidity, while precisely ground cutting edges promote smooth cutting conditions. Coatings improve heat resistance and wear resistance and internal cooling can be critical for deep cavities or thermally stressed materials.

Selection criteria

The selection of the appropriate end mill depends on the material, machine rigidity, desired surface finish and machining strategy. For soft or long-chipping materials, large chip clearance angles are recommended, while hard or tough materials require stable cutting edges and a higher number of cutting edges. Low runout, a suitable clamping method and appropriate cooling increase tool life and ensure consistent machining results.

What is a solid carbide end mill used for?

For shoulders, pockets, flat surfaces and complex contours in a wide range of metallic materials.

Which number of cutting edges is suitable for which material?

Fewer cutting edges provide larger chip clearance zones for materials that produce long chips, while more cutting edges provide greater stability when machining hard materials.

Does the twist angle matter?

Yes, it affects cutting smoothness and stability and should be tailored to the material and cutting strategy.
