HAM 40-1571
solid carbide end mill
Product information
- special geometry with unequal helix
- very smooth running
- HSF - Hybride Surface Finishing
- High Speed Cutting
- shrink fit
Available in many variants
Material Properties
Material
wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable
limited suitable
Properties "HAM 40-1571"
| clamping surface: | HA |
|---|---|
| cutting direction: | right hand cutting |
| head coating: | no |
| internal cooling: | no |
| nominal diameter tolerance: | e8 |
| saft diameter tolerance: | h6 |
| spiral type: | right hand helix |

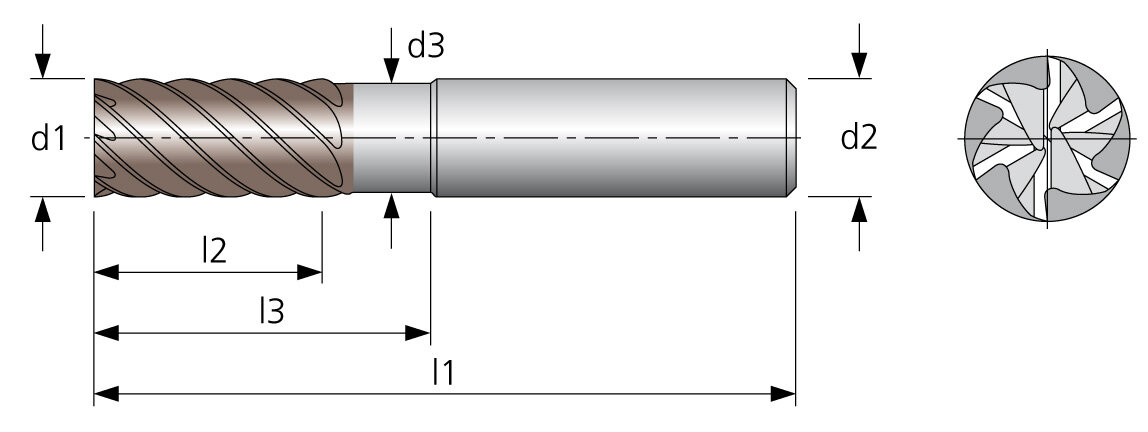

Article No
Nominal Ø
(d1) [mm]
(d1) [mm]
Shank Ø
(d2) [mm]
(d2) [mm]
Length
(l1) [mm]
(l1) [mm]
Flute Length [mm]
Cutting Length
(l2) [mm]
(l2) [mm]
Stock
HAM 40-1571-0600-13
6.00 mm
6.00 mm
57.00 mm
0.00 mm
13.00 mm
29
HAM 40-1571-0600-18
6.00 mm
6.00 mm
62.00 mm
0.00 mm
18.00 mm
103
HAM 40-1571-0800-19
8.00 mm
8.00 mm
63.00 mm
0.00 mm
19.00 mm
103
HAM 40-1571-0800-24
8.00 mm
8.00 mm
68.00 mm
0.00 mm
24.00 mm
24
HAM 40-1571-1000-22
10.00 mm
10.00 mm
72.00 mm
0.00 mm
22.00 mm
42
HAM 40-1571-1000-30
10.00 mm
10.00 mm
80.00 mm
0.00 mm
30.00 mm
41
HAM 40-1571-1200-26
12.00 mm
12.00 mm
83.00 mm
0.00 mm
26.00 mm
32
HAM 40-1571-1200-36
12.00 mm
12.00 mm
93.00 mm
0.00 mm
36.00 mm
45
HAM 40-1571-1600-32
16.00 mm
16.00 mm
92.00 mm
0.00 mm
32.00 mm
36
HAM 40-1571-1600-48
16.00 mm
16.00 mm
108.00 mm
0.00 mm
48.00 mm
14
HAM 40-1571-1600-65
16.00 mm
16.00 mm
150.00 mm
0.00 mm
65.00 mm
1
HAM 40-1571-2000-110
20.00 mm
20.00 mm
180.00 mm
0.00 mm
110.00 mm
14
HAM 40-1571-2000-38
20.00 mm
20.00 mm
104.00 mm
0.00 mm
38.00 mm
20
HAM 40-1571-2000-60
20.00 mm
20.00 mm
125.00 mm
0.00 mm
60.00 mm
19
HAM 40-1571-2000-80
20.00 mm
20.00 mm
150.00 mm
0.00 mm
80.00 mm
20
HAM 40-1571-2500-110
25.00 mm
25.00 mm
180.00 mm
0.00 mm
110.00 mm
9
HAM 40-1571-2500-150
25.00 mm
25.00 mm
230.00 mm
0.00 mm
150.00 mm
4
HAM 40-1571-2500-40
25.00 mm
25.00 mm
110.00 mm
0.00 mm
40.00 mm
18
HAM 40-1571-2500-75
25.00 mm
25.00 mm
150.00 mm
0.00 mm
75.00 mm
12
HAM 40-1571-3200-125
32.00 mm
32.00 mm
200.00 mm
0.00 mm
125.00 mm
0
HAM 40-1571-3200-155
32.00 mm
32.00 mm
230.00 mm
0.00 mm
155.00 mm
4
HAM 40-1571-3200-85
32.00 mm
32.00 mm
155.00 mm
0.00 mm
85.00 mm
1
Description
| Spiral type | right hand helix |
| Cutting direction | right hand cutting |
| Clamping surface | HA |
| Head coating | no |
| Internal cooling | no |
