HAM 40-5120
solid carbide end mill
Product information
- centre cutting
- long cutting length
- reinforced web thickness
- HSF - Hybride Surface Finishing
- shrink fit
Available in many variants
Material Properties
Material
wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable
limited suitable
Properties "HAM 40-5120"
| clamping surface: | HA |
|---|---|
| cutting direction: | right hand cutting |
| head coating: | no |
| internal cooling: | no |
| nominal diameter tolerance: | e8 |
| saft diameter tolerance: | h6 |
| spiral type: | right hand helix |

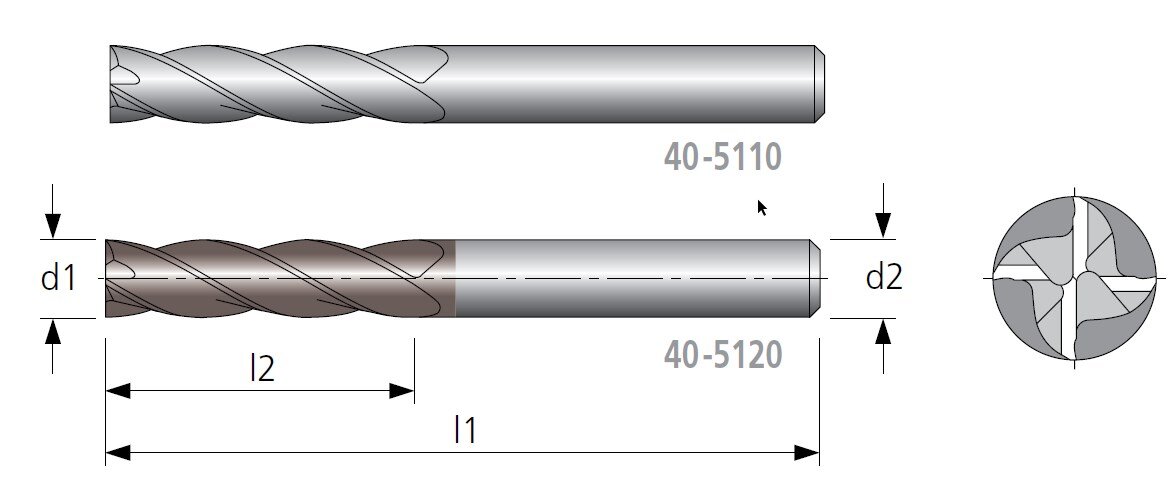

Article No
Nominal Ø
(d1) [mm]
(d1) [mm]
Shank Ø
(d2) [mm]
(d2) [mm]
Length
(l1) [mm]
(l1) [mm]
Flute Length [mm]
Cutting Length
(l2) [mm]
(l2) [mm]
Stock
HAM 40-5120-0600-40
6.00 mm
6.00 mm
100.00 mm
0.00 mm
40.00 mm
5
HAM 40-5120-0800-40
8.00 mm
8.00 mm
100.00 mm
0.00 mm
40.00 mm
3
HAM 40-5120-1000-40
10.00 mm
10.00 mm
100.00 mm
0.00 mm
40.00 mm
4
HAM 40-5120-1200-45
12.00 mm
12.00 mm
100.00 mm
0.00 mm
45.00 mm
3
HAM 40-5120-1400-45
14.00 mm
14.00 mm
100.00 mm
0.00 mm
45.00 mm
8
HAM 40-5120-1400-65
14.00 mm
14.00 mm
150.00 mm
0.00 mm
65.00 mm
8
HAM 40-5120-1600-45
16.00 mm
16.00 mm
100.00 mm
0.00 mm
45.00 mm
1
HAM 40-5120-1600-65
16.00 mm
16.00 mm
150.00 mm
0.00 mm
65.00 mm
3
HAM 40-5120-1800-50
18.00 mm
18.00 mm
125.00 mm
0.00 mm
50.00 mm
1
HAM 40-5120-1800-65
18.00 mm
18.00 mm
150.00 mm
0.00 mm
65.00 mm
6
HAM 40-5120-2000-110
20.00 mm
20.00 mm
180.00 mm
0.00 mm
110.00 mm
9
HAM 40-5120-2000-55
20.00 mm
20.00 mm
125.00 mm
0.00 mm
55.00 mm
7
HAM 40-5120-2000-80
20.00 mm
20.00 mm
150.00 mm
0.00 mm
80.00 mm
0
HAM 40-5120-2500-110
25.00 mm
25.00 mm
180.00 mm
0.00 mm
110.00 mm
5
HAM 40-5120-2500-150
25.00 mm
25.00 mm
230.00 mm
0.00 mm
150.00 mm
0
HAM 40-5120-2500-55
25.00 mm
25.00 mm
125.00 mm
0.00 mm
55.00 mm
6
HAM 40-5120-2500-80
25.00 mm
25.00 mm
150.00 mm
0.00 mm
80.00 mm
3
HAM 40-5120-3200-110
32.00 mm
32.00 mm
180.00 mm
0.00 mm
110.00 mm
4
Description
| Spiral type | right hand helix |
| Cutting direction | right hand cutting |
| Clamping surface | HA |
| Head coating | no |
| Internal cooling | no |
