HAM 40-5191
solid carbide end mill
Product information
- special geometry with unequal helix
- special chip breaker for short chips
- high chipping volume
- very smooth running
- centre cutting
- cutting area geometrical balanced
- HSF - Hybride Surface Finishing
- High Speed Cutting
- High Performance Cutting
- shrink fit
Available in many variants
Material Properties
Material
wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable
limited suitable
Properties "HAM 40-5191"
| clamping surface: | HA |
|---|---|
| cutting direction: | right hand cutting |
| head coating: | no |
| internal cooling: | no |
| nominal diameter tolerance: | e8 |
| saft diameter tolerance: | h6 |
| spiral type: | right hand helix |

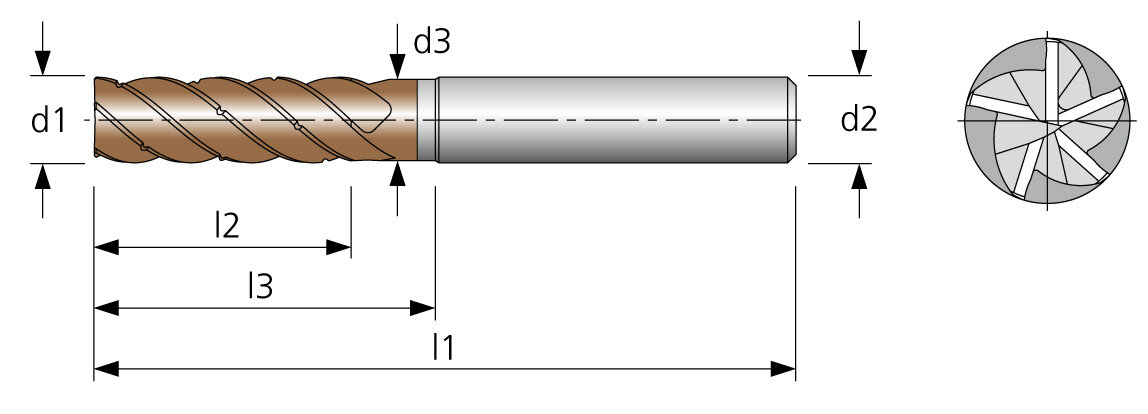

Article No
Nominal Ø
(d1) [mm]
(d1) [mm]
Shank Ø
(d2) [mm]
(d2) [mm]
Length
(l1) [mm]
(l1) [mm]
Flute Length [mm]
Cutting Length
(l2) [mm]
(l2) [mm]
Stock
HAM 40-5191-0600
6.00 mm
6.00 mm
64.00 mm
0.00 mm
18.00 mm
10
HAM 40-5191-0800
8.00 mm
8.00 mm
70.00 mm
0.00 mm
24.00 mm
26
HAM 40-5191-1000
10.00 mm
10.00 mm
82.00 mm
0.00 mm
30.00 mm
23
HAM 40-5191-1200
12.00 mm
12.00 mm
95.00 mm
0.00 mm
36.00 mm
0
HAM 40-5191-1600
16.00 mm
16.00 mm
110.00 mm
0.00 mm
48.00 mm
23
HAM 40-5191-2000
20.00 mm
20.00 mm
127.00 mm
0.00 mm
60.00 mm
8
Description
| Spiral type | right hand helix |
| Cutting direction | right hand cutting |
| Clamping surface | HA |
| Head coating | no |
| Internal cooling | no |
