HAM 40-5220-HB
solid carbide end mill
Product information
- for hard milling up to 65 HRC
- rake angle negative
- reinforced web thickness
- High Speed Cutting
- shrink fit
Available in many variants
Material Properties
Material
wrought aluminium alloys
casting aluminium alloys
steel < 800 N/mm²
steel < 1200 N/mm²
steel < 1600 N/mm²
steel < 55 HRC
steel < 60 HRC
steel < 66 HRC
stainless steel < 800 N/mm²
stainless steel > 800 N/mm²
lamellar graphite cast iron
spheroidal graphite cast iron
high-temperature alloys
titanium
non-ferrous metals / copper alloys
graphite & fibre composite
MQL
maximum cooling
without cooling
AIR
very suitable
limited suitable
Properties "HAM 40-5220-HB"
| clamping surface: | HB |
|---|---|
| cutting direction: | right hand cutting |
| head coating: | no |
| internal cooling: | no |
| nominal diameter tolerance: | e8 |
| saft diameter tolerance: | h6 |
| spiral type: | right hand helix |

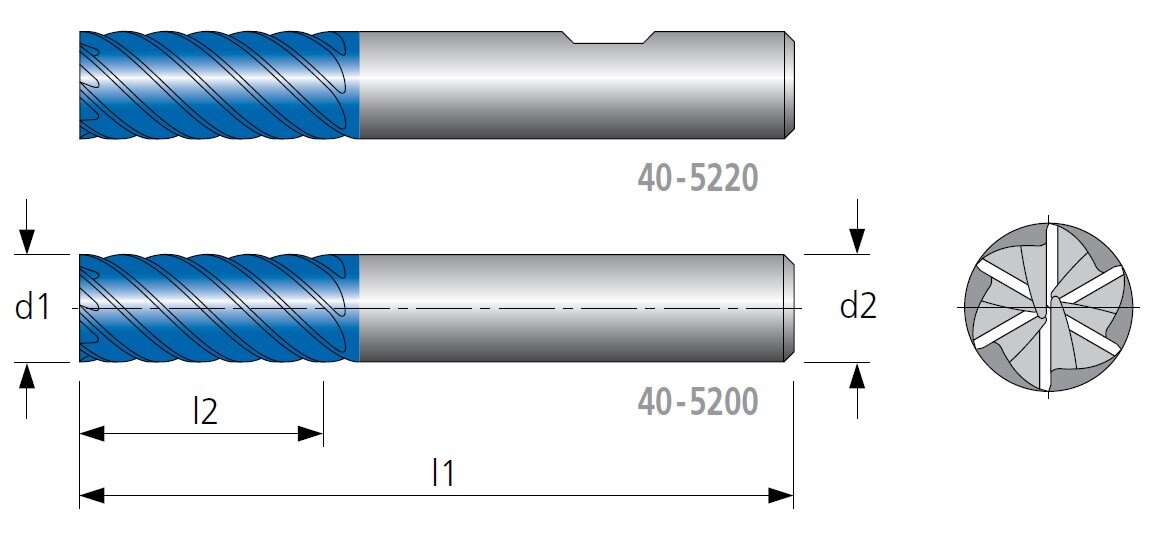

Article No
Nominal Ø
(d1) [mm]
(d1) [mm]
Shank Ø
(d2) [mm]
(d2) [mm]
Length
(l1) [mm]
(l1) [mm]
Flute Length [mm]
Cutting Length
(l2) [mm]
(l2) [mm]
Stock
HAM 40-5220-0300-HB
3.00 mm
6.00 mm
57.00 mm
0.00 mm
8.00 mm
1
HAM 40-5220-0400-HB
4.00 mm
6.00 mm
57.00 mm
0.00 mm
8.00 mm
9
HAM 40-5220-0500-HB
5.00 mm
6.00 mm
57.00 mm
0.00 mm
11.00 mm
7
HAM 40-5220-0600-HB
6.00 mm
6.00 mm
57.00 mm
0.00 mm
13.00 mm
22
HAM 40-5220-0800-HB
8.00 mm
8.00 mm
63.00 mm
0.00 mm
19.00 mm
20
HAM 40-5220-1000-HB
10.00 mm
10.00 mm
72.00 mm
0.00 mm
22.00 mm
10
HAM 40-5220-1200-HB
12.00 mm
12.00 mm
83.00 mm
0.00 mm
26.00 mm
8
HAM 40-5220-1400-HB
14.00 mm
14.00 mm
83.00 mm
0.00 mm
26.00 mm
38
HAM 40-5220-1600-HB
16.00 mm
16.00 mm
92.00 mm
0.00 mm
32.00 mm
1
HAM 40-5220-1800-HB
18.00 mm
18.00 mm
92.00 mm
0.00 mm
32.00 mm
7
HAM 40-5220-2000-HB
20.00 mm
20.00 mm
104.00 mm
0.00 mm
38.00 mm
15
HAM 40-5220-2500-HB
25.00 mm
25.00 mm
110.00 mm
0.00 mm
75.00 mm
10
HAM 40-5220-3200-HB
32.00 mm
32.00 mm
110.00 mm
0.00 mm
40.00 mm
4
Description
| Spiral type | right hand helix |
| Cutting direction | right hand cutting |
| Clamping surface | HB |
| Head coating | no |
| Internal cooling | no |
